Create Policies

Before creating policies, need to build the policy artifacts from the source.

Building from the source¶

If you want to build the Financial Services APIM Mediation Policies from the source code:

1. Install Java 11 or above.

2. Install Apache Maven 3.0.5 or above.

3. Get the Financial Services APIM Mediation Policies from this repository by cloning or downloading the repository as a zip.

   • To clone the solution, copy the URL and execute the following command in a command prompt. git clone <the copiedURL>. After cloning, checkout to the main branch.
   • To download the repository, select the main branch first, then click Download ZIP and unzip the downloaded file.

4. Navigate to the cloned/downloaded repository using a command prompt and run the relevant Maven command:

How to use mediation artifacts¶

1. Once the maven build is successful, navigate to the fs-apim-mediation-artifacts/target folder to get the zip file containing all the mediation policies,custom sequences and class mediators & handlers to copy in to WSO2 API Manager.

2. Extract the zip 'fs-apim-mediation-artifacts-1.0.0.zip' and you will notice the following folder structure.

   • Policy .j2 files - The mediation policy files which need to upload in API Publisher UI and engage to APIs. Below mediation policies are available in this repository.
   • Custom sequences- Synapse based custom sequence files which need to copy in to <APIM_Home>/repository/deployment/synapse-cofngis/default/sequences folder.
   • lib - This folder contains the jars need to copy in to <APIM_Home>/repository/lib folder. It contains jars of the class mediator implementations refer from the policies and custom synapse handler implementations.

3. Restart the API Manager Server.

Creating a Common Policy¶

1. Sign in to the API Publisher Portal at https://<APIM_HOSTNAME>:9443/publisher.

2. Click on the Policies tab on the left side tab panel.

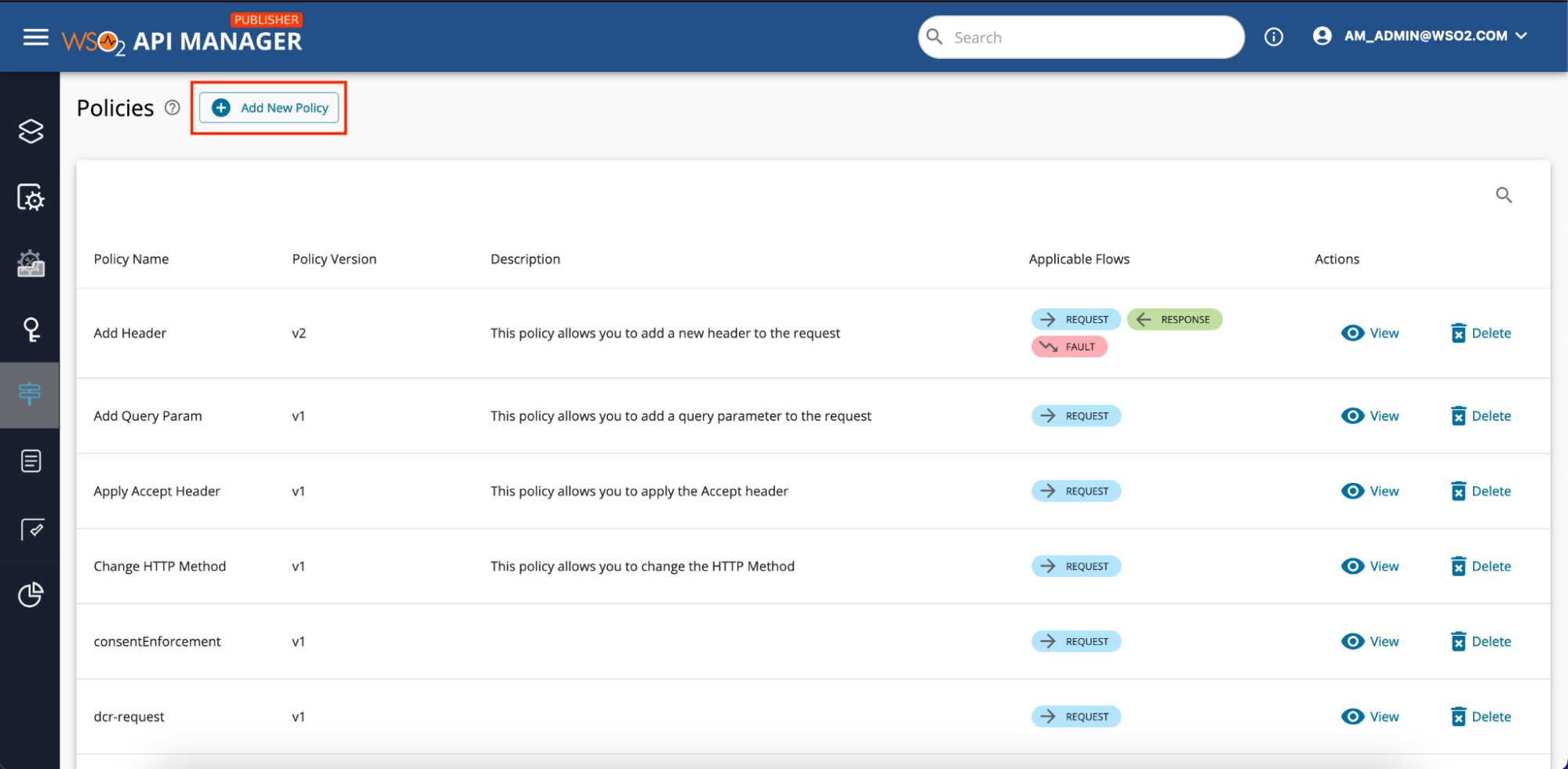

3. Click on Add New Policy.

Creating an API Policy¶

1. Sign in to the API Publisher Portal at https://<APIM_HOSTNAME>:9443/publisher.

2. Click on the API that you want to create the policy.

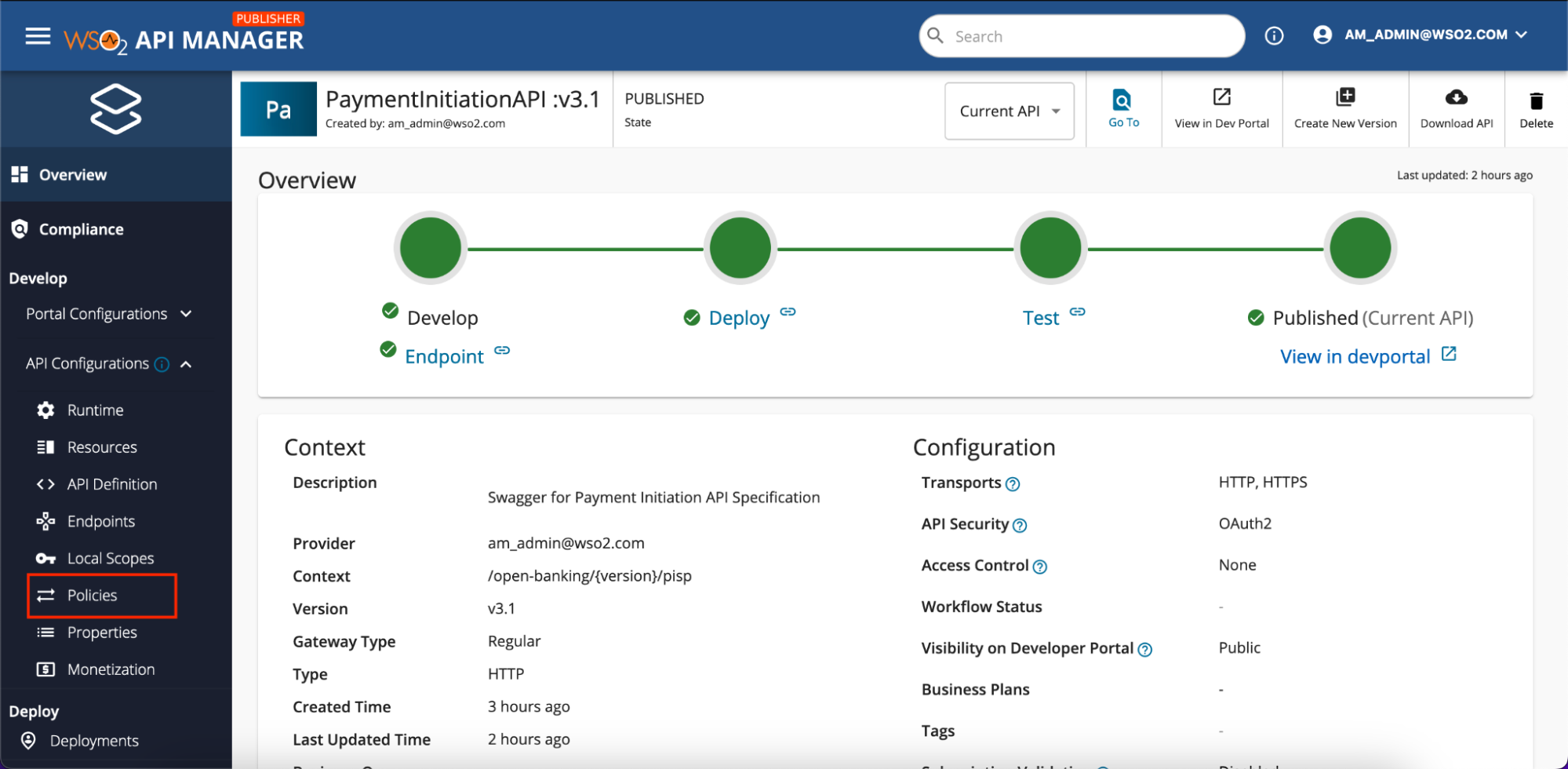

3. Click on the Policies tab under API Configurations on left side tab panel.

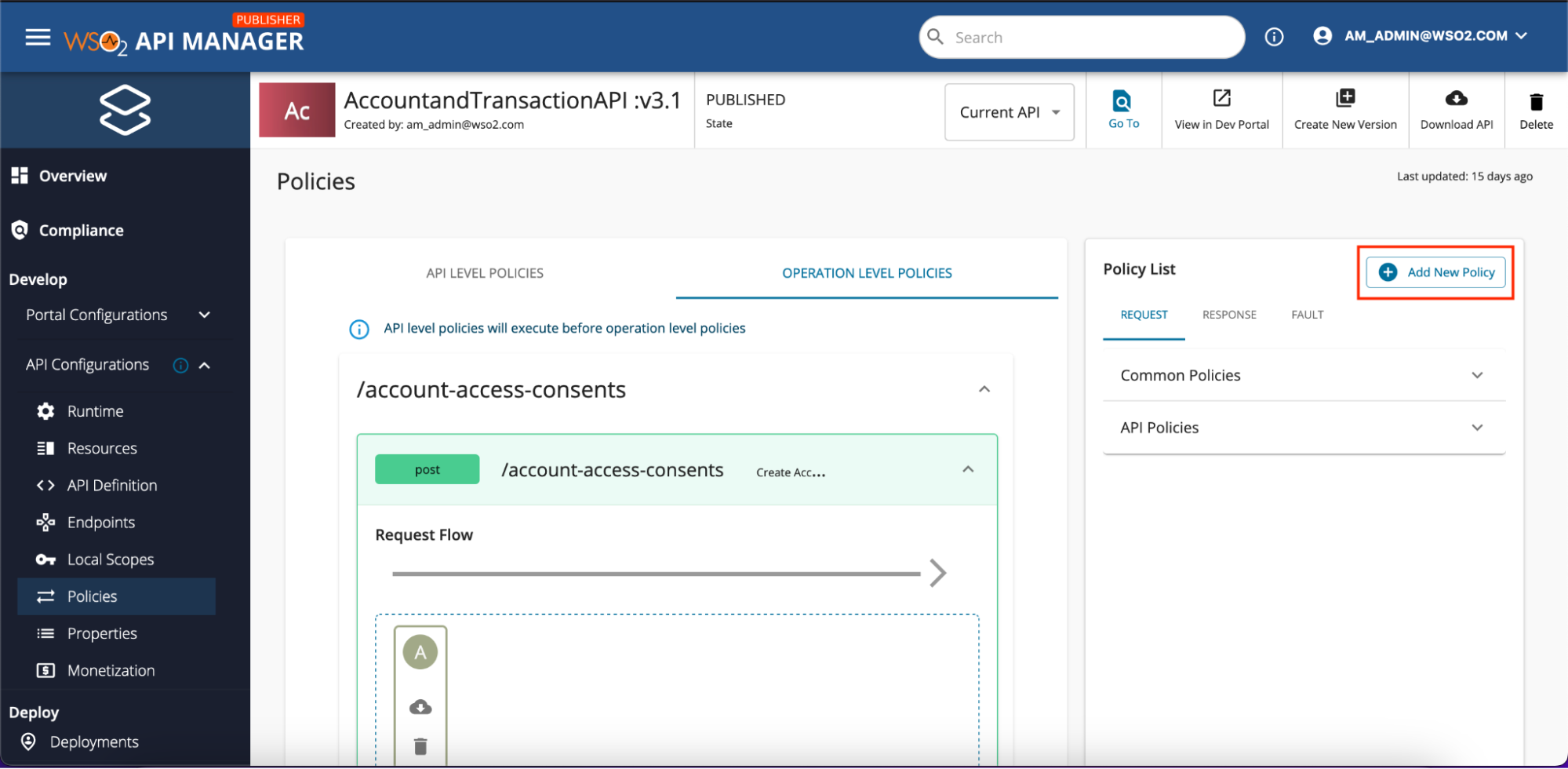

4. Click on Add New Policy button to add a new policy.

Defining the policy config¶

Follow the following steps to define the policy in either type.

1. Enter the basic details of the policy.

   Field	Description
   Name	Name of the Policy
   Version	Version of the Policy
   Description	Description of the Policy
   Applicable Flows	Which flow the policy should be applied.
   Supported API Types	Which API Type the policy should be applied.

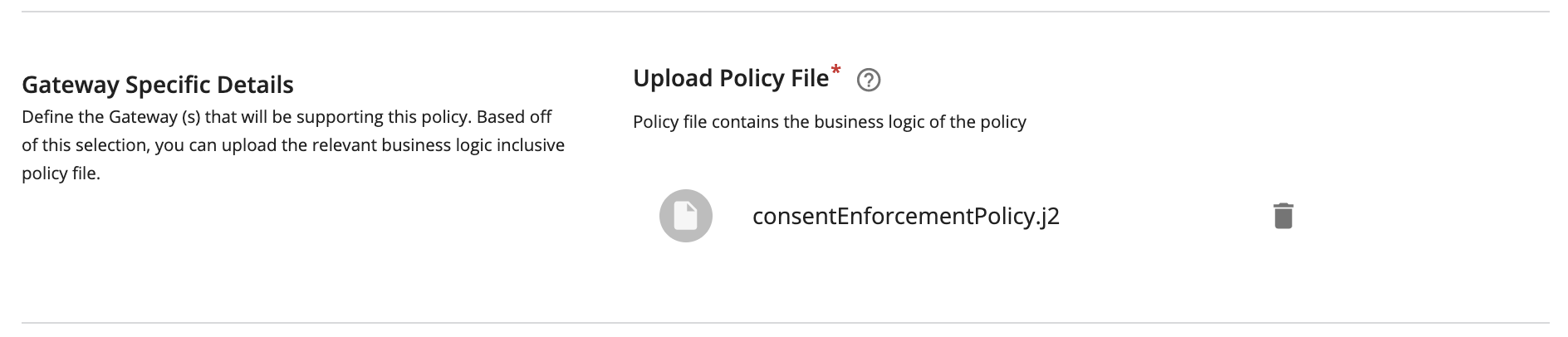

2. Upload the policy file from the relevant place.

3. Add policy attributes if there are any attributes for the policy.

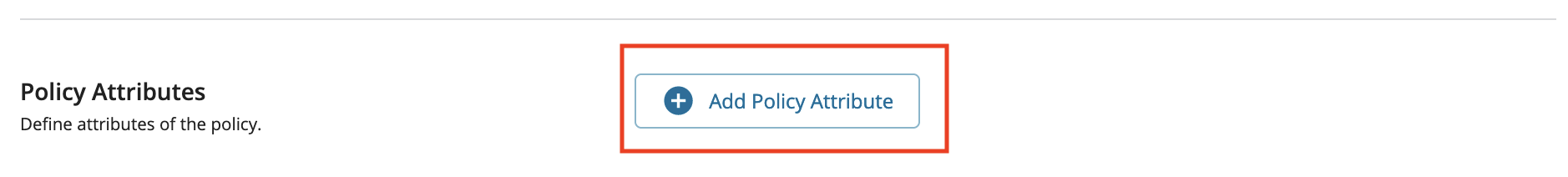

   • Click on Add Policy Attribute button.

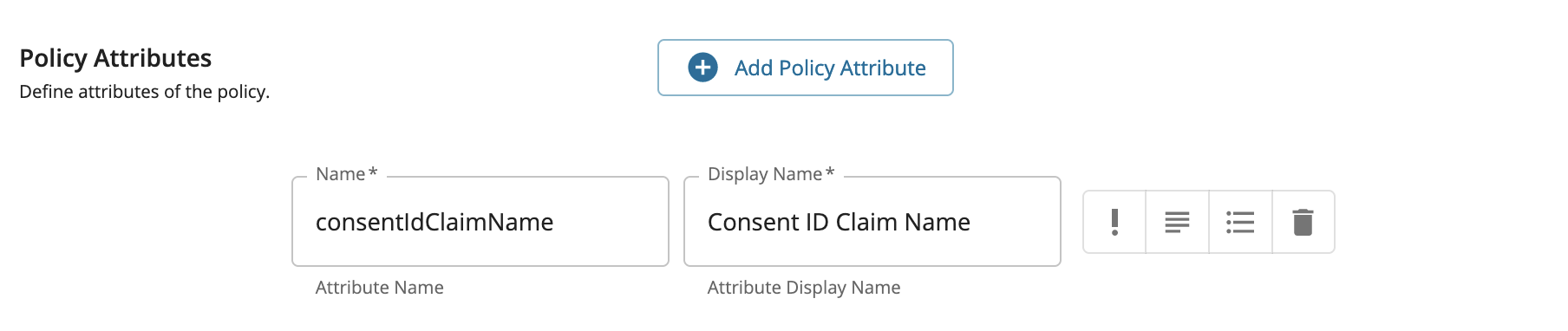

   • Add the attribute Name and Display Name.

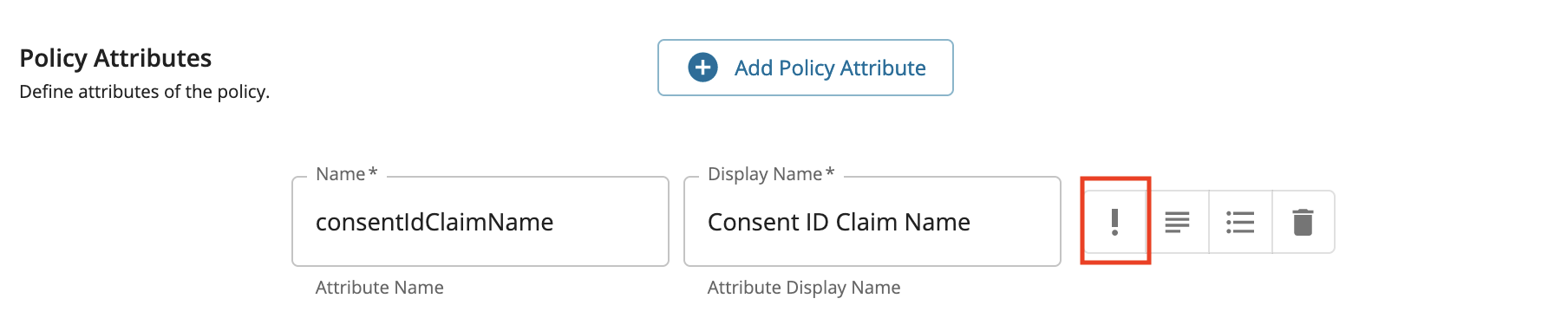

   • If the attribute is required mark it as below.

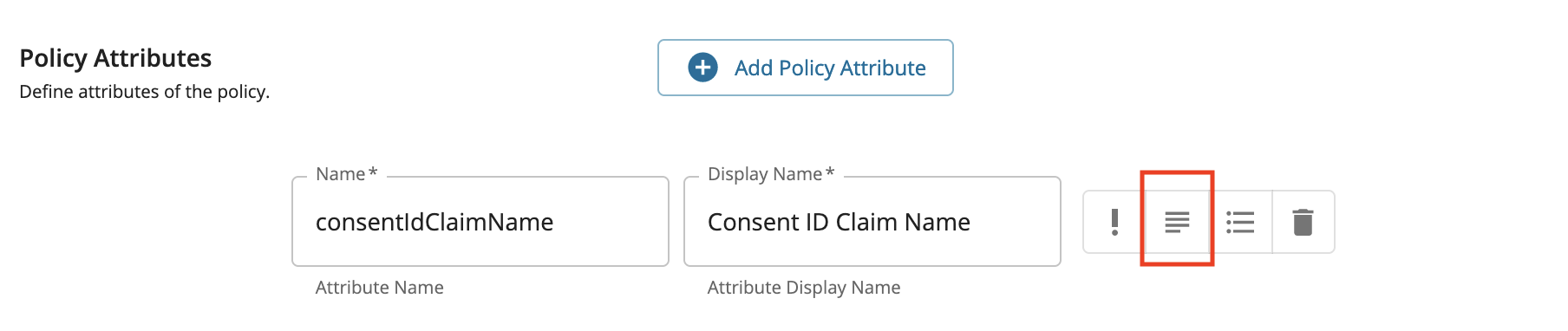

   • Click on the Description box to add a description to the attribute.

   • Add the description of the attribute.

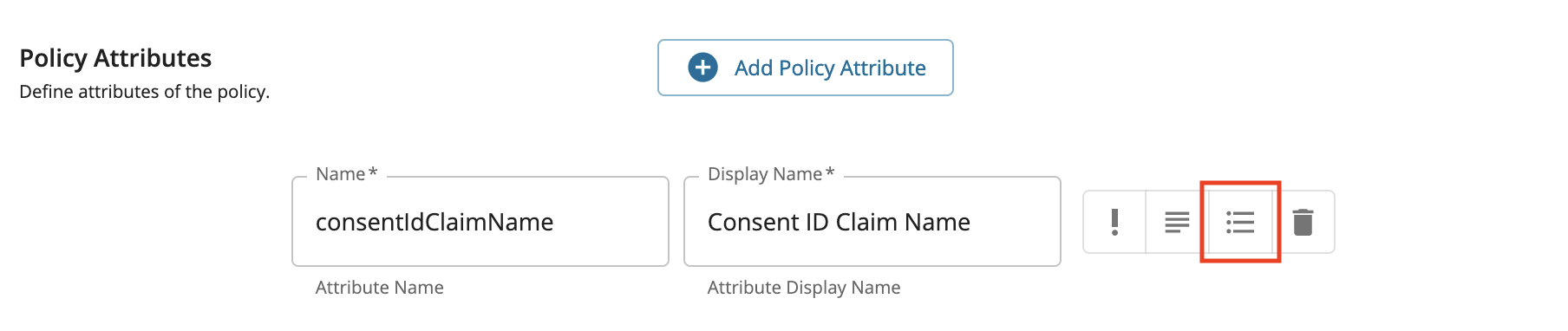

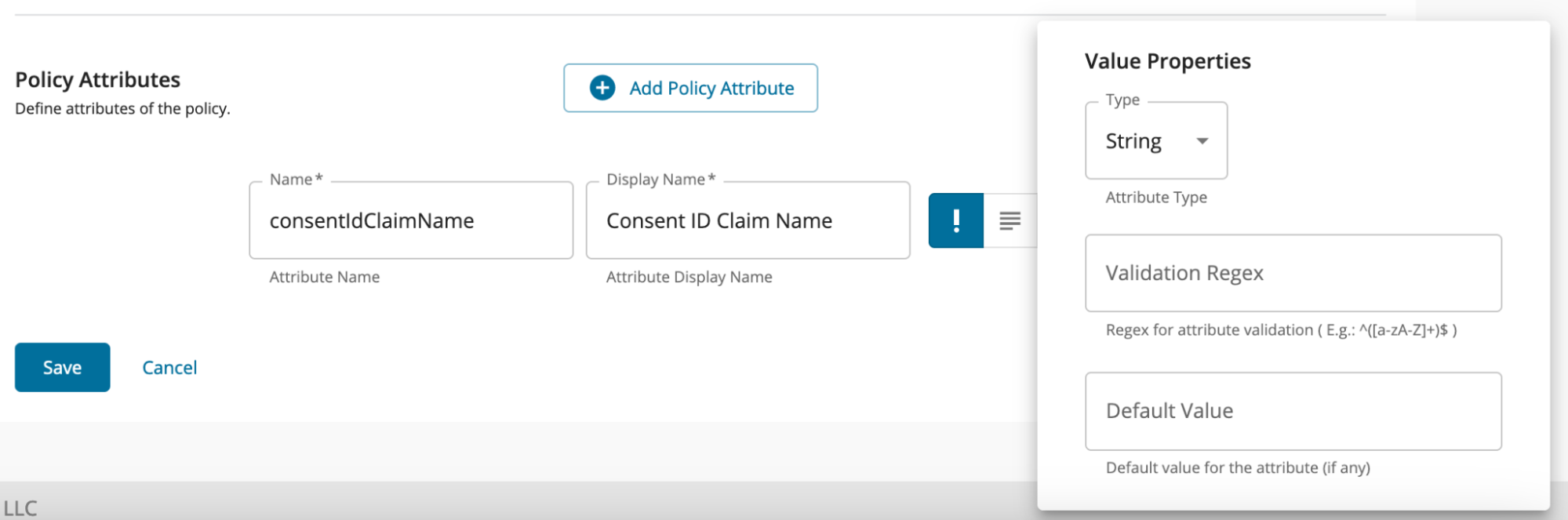

   • Click on the Value Properties box.

   • Add the attribute value properties.

4. Add then click on Save.
